Twisted Paper Rope Handle Making Machine Water Glue/Hot Melt Glue

Model:XKYS-02

XKYS-02 Twisted Paper Rope Handle Making Machine Water Glue/Hot Melt Glue is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles.

Machine Series : XKYS-02

Rope Spacing : 95mm(Optional)

Production Speed : 5000-8000pairs/hour

Twisted Paper Rope Handle Making Machine Water Glue/Hot Melt Glue
Product Applications
Product Description

Twisted Paper Rope Handle Making Machine Water Glue/Hot Melt Glue is mainly supporting semi-automatic paper bag machines. It can quickly produce paper handle with twisted rope, which can be attached onto the paper bag without handles in further production and make it into paper handbags. This machine takes two narrow paper rolls and one paper rope as raw material, sticks scraps of paper and paper rope together, which will be cut off gradually to form paper handles. In addition, the machine also has automatic counting and gluing functions, which can greatly improve the efficiency of subsequent processing operations of users.





Handle Machine Features



Twisted Paper Rope Handle Making Machine Water Glue/Hot Melt Glue is easy to operate and can produce paper handles with high speed usually reach 130 pairs per minute.

We design and offer the optional auto-production line, which can automatic gluing replace the human gluing procedure so that help to reduce lots of labor cost. It is strongly advice the paper bag producing factory use the auto-produce line that also support customize.

The unit paper bag can lift the heavy things of 15 kg at most, when the tension of raw materials reaches a certain level.

This machine adopts Huangshang melt-glue machine of Taiwan with service points in many countries, can provide customers with the fastest service.



Product Parameters
Model XKYS-02

Paper Roll Core Diameter

Φ76 mm(3'')

Max. Paper Roll Diameter

Φ1000mm

Production Speed

5000-8000pairs/hour

Power Requirements

380V

Total Power

7.8KW

Total Weight

Appr.1500kg

Overall Dimension

L4000*W1300*H1500mm

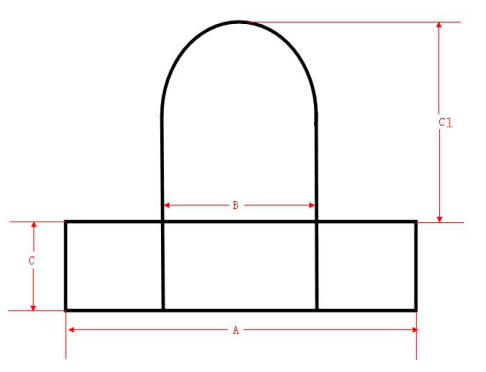

Paper Length (A)

190mm(Optional)

Paper Rope Handle Spacing (B)

95mm(Optional)

Paper Width (C)

35/40mm

Paper Rope Height (D)

100mm

Paper Roll Diameter

3.0-4mm

Glue Type

Hot-melt glue

Conveyor

5m



Size(L*W*H) mm

Quantity

Weigh

Remark

2260X1400X1700

1

1500kg



2100X900X1620

1

550kg

Feeding Part





Round Paper Rope Twisting Machine-Two Heads



Paper Rope Twisting Machine Features



This machine mainly support high speed paper handle machine and paper bag machine. It can make paper rope in a high speed and provide paper rope for paper handle machine machine.  The machine uses narrow web as raw material, through the high speed spinning of the axes of the machine, paper twisted into rope and kept in paper rope roll. Users can adjust the diameter of the paper rope to meet different production needs.





Paper Rope Twisting Machine Specification



Model

XKYS

Core Diameter of Raw Rope Roll

66mm

Max Paper Rope Diameter

450mm

Paper Roll Width

20-100mm

Paper Thickness

15-60g/m2

Paper Rope Diameter

2.5-6mm

Max. Rope Roll Diameter

300mm

Max. Paper Rope Width

300mm

Production Speed

20-40m/min

Power Requirements

220V

Total Power

1.5KW

Total Weight

300KG

Overall Dimension(L×W×H)

1580*1440*930mm





Round Paper Rope Rewinding Machine



Paper Rope Rewinding Machine Features



This machine mainly support twisted paper rope machine. This machine takes the paper rope roll produced from twisted paper rope machine as the raw material, releases the roll on one shaft and twines it on the other shaft on the machine. This machine can not only enlarge the diameter of the paper rope roll, but also eliminate rope knots in the raw paper rope roll, so that the application efficiency of paper rope roll can be greatly improved in further productions.





Paper Rope Rewinding Machine Specification



Model

XKFJ

Core Diameter of Raw Rope Roll

76 mm

Core Diameter of Final Rope Roll

180 mm

Final Rope Reel Diameter

400-500mm

Max. Production Speed

80-150M/min

Power Requirements

380V

Total Power

2.2KW

Total Weight

150KG

Overall Dimension

L1050mm×W800mm×H1200mm

Product Details
Double unwinding unit
Use automatic correction to ensure that the handle patch is in the correct position
High quality hot melt system can reduce the melt cost and defective
Top brand hot melt system made in Taiwan durable and long service life
Handle making unit
FAQ
Twisted Paper Rope Handle Making Machine Water Glue/Hot Melt Glue

Usually we quote within 24 hours after we get your inquiry.

What is the price of shipping?

Depending upon the port of delivery, prices varies.

How long can we get the goods?

For standard machine, we usually delivery in three weeks. Customized machine delivery in 30-60 days.
